Cultivation Climate Control System
Quick Summary:
A. Develop our own control methodology based on over 28 years HVAC experiences
B. Implement Siemens industrial PLC and Touch Screen Interface
C. Integrate electronic expansion valve, water valve, pressure sensors, temperature sensors, humidity sensors, CO2 sensors, DC or EC Fan and Fixed Speed / DC inverter compressors into precision cooling or constant temp. & Humidity control system.
D. Controls cultivation room constant temp. & humidity control & CO2
E. Independent Day / Night different settings for Temp. and Humidity
F. Choices for pre-heat or pre-cool for different species demand
G. Options for add on CO2 Generator via External power outlet
H. Record min/max CO2, humidity, temperature via data logger
I. Integrate communication module, support Modbus RTU, VNC, Email Alarm
J. Heat Exchange: Air cool /Water heat exchange cool
K. Capacities: 40,000;50,000;60,000 BTU/H
M. More detail spec: please send email:ken88chiang@gmail.com
Our Products:
Cultivation Climate Control System
|
|
|
|
| Model # | Green AirCon 150 |
| Norminal Capacity | 60,000 BTU/H |
| Control Unit | Siemens Industrial PLC |
| Human Interface | 4.3” Touch Panel, Support VNC Connection |
| Data Storage | Support Micro SD up to 16G for Temp. Event record |
| Fan | AC Blower* 1 Pc (Up to 2,436 CFM) |
| *External Temp. Sensors (Optional) | 2 External Sensors for upper and lower temp. transmition |
| *Refrigrant System Protection(Optional) | Refrigrant High Pressure / Low Pressure Switches |
| Group Operation Management System | Group Operation up to 4 Green AirCon Systems. Support Scheduling, backup operation,temp. or event trigger operation |
| Communication Module | Support Modbus RTU |
| Size | H 2,025mm * W 300mm *D 1,000/1,200mm |

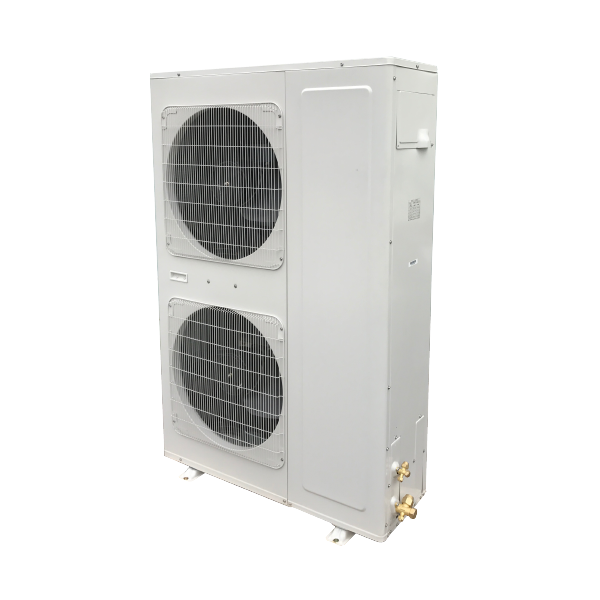

| Heat Exchange (Air Cool) | |
| Compressor | Fixed Speed Scroll Compressor |
| Expansion Valve | Electronic Expansion Valve |
| Pressure Sensors | 2 Pressure Transmitter |
| Fans | AC Fans |
| Temp. Sensors | 5 Temp. Sensors for monitoring and controlling |
| Size | H 1,490mm * W 1,050mm *D 420 mm |
| Power | 220V,3Ph, 50/60 Hz |
